Technical data

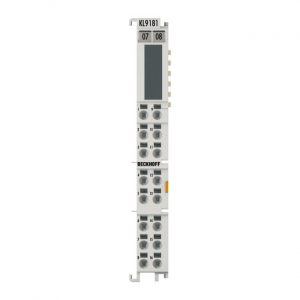

KL9181
Number of separate potentials
2
Terminal points per potential
8
Current load
max. 10 A (per terminal point)
Power LED
–
Defect LED
–
Current consumption K-bus
–
Nominal voltage
? 60 V AC/DC
Electrical isolation
500 V (K-bus/field potential)
PE contact
–
Shield connection
–
K-bus, looped through
yes
Power contacts_looped_through
yes (2 power contacts)
Bit width in the process image
–
Electrical connection to DIN rail
–
Electrical connection to power contacts
–
Configuration
no address or configuration setting
Special features
2 x 8-way bridges
Weight
approx. 60 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
