Technical data

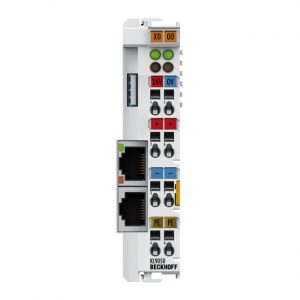

KL9050
Number of Bus Terminals
64
Current load
? 10 A
Power LED
green
Defect LED
–
Type/number of peripheral signals
Bus Coupler dependency
Distance between stations
max. 5 m between KL9050 and KL9050
Bus interface
2 x RJ45 socket (input + output)
Power supply
24 V DC (-15 %/+20 %)
Input current
70 mA + (total K-bus current)/4, 200 mA max.
Starting current
2.5 x continuous current
Current consumption K-bus
typ. 70 mA + (total K-bus current)/4, max. 200 mA
Current supply K-bus
up to 400 mA
Power contacts
max. 24 V DC/max. 10 A
Nominal voltage
24 V DC (-15 %/+20 %)
Electrical isolation
500 V (power contact/supply voltage/fieldbus)
PE contact
yes
Shield connection
–
Electrical connection to DIN rail
–
Special features
coupler terminal for K-bus extension (max. 64 Bus Terminals)
Weight
approx. 75 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX, DNV GL
Ex marking
II 3 G Ex nA IIC T4 Gc
