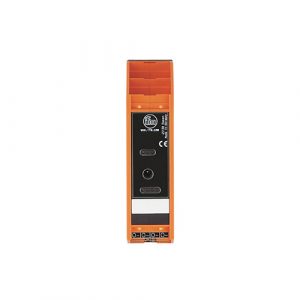

Electrical data
Operating voltage [V] 26.5…31.6 DC
Max. current consumption from AS-i [mA] 50
Max. current load total [A] 4; (> 50 °C: 2000 mA)
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 4
Outputs
Number of digital outputs
4
Circuit
PNP
Voltage range DC [V] 20…30; (external (E+/E-), to PELV)
Max. current load per output [mA] 1000; (utilisation category DC-12: 700 mA; utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Short-circuit proof
yes
Electrically separated
yes
Operating conditions
Ambient temperature [°C] -25…70
Note on ambient temperature
cRUus: -25…60 °C
Protection
IP 20
AS-i classification
AS-i version
2.1
AS-i addressing
addressing socket
Extended addressing mode possible
no
AS-i profile
S-8.0.E
AS-i I/O configuration [hex] 8
AS-i ID code [hex] 0.E
AS-i certificate
37302
Assignment of the data bits
data bit
D0
D1
D2
D3
Output
O-1
O-2
O-3
O-4
Mechanical data
Weight [g] 126
Type of mounting
mounting on DIN rail; string mounting possible
Materials
PA
Displays / operating elements
Display
switching status
LED, yellow
operation
LED, green
errors
LED, red
Accessories
Accessories (optional)
COMBICON connectors
Remarks
Pack quantity
1 pcs.
Electrical connection
Connection
COMBICON:
