Model

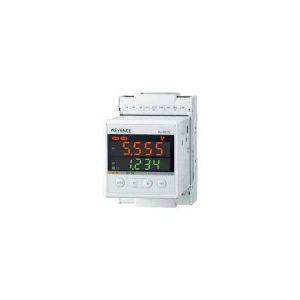

KL-DC1V
General specifications
Measurement type
DC voltage
Power voltage
24 VDC ± 10%, Class 2
Operating ambient temperature
0 to +50°C (no freezing)
Operating ambient humidity
35 to 85%RH(no condensation)
Ambient temperature for storage
-20 to +70°C
Operating environment
Minimal amount of dust and corrosive gas present
Measurement category
III
Wire temperature rating
+60°C or more
Noise immunity
1,500 Vp-p or more, pulse width: 1 µs, 50 ns (by way of a noise simulator), conforms to IEC standards (IEC 61000-4-2/-3/-4/-6)
Withstand voltage
1,500 VAC for 1 minute (between the power supply terminal and each terminal and between all the terminals and the case)
Insulation resistance
100 MΩ or more (tested with a 500 VDC megger, between the power supply terminal and each I/O terminal and between all the terminals and the case)
Internal current consumption (excluding current for driving input circuits)
170mA or less
Shock resistance
Conforms to JIS B 3502 and IEC 61131-2, 147 m/s2, operating time: 11 ms, 3 times in each of the 3 directions
Pollution degree
2
Vibration resistance
Intermittent vibration
Frequency: 10 to 57 Hz
Amplitude: 0.075 mm*1
Frequency: 57 to 150 Hz
Acceleration: 9.8 m/s2*1
Continuous vibration
Frequency: 10 to 57 Hz
Amplitude: 0.035 mm*1
Frequency: 57 to 150 Hz
Acceleration: 4.9 m/s2*1
Weight
approx 350g
Performance specifications
Number of channels
1CH
Number of ranges
3
Range switching
Setting: Use the setting switch. Connection: The connection terminal varies depending on the range.
Input method
Single-ended
Sampling rate
Normal mode: 1 ms (1,000 times/sec.), high-precision mode: 100 ms (10 times/sec.)
Input range*2
Range 1: 0 to 10 V, range 2: ±10 V, range 3: ±100 V*2
Displayable range
Range 1: 0 to 20 mA
0.000 to 10.999V*3
Range 2: ±10 mA
-10.999 to 10.999V*3
Range 3: ±100 mA
-109.99 to 109.99V*3
Resolution
Normal
Range 1: 0 to 20 mA
1 mV (0.001 V; 1/10000)*4
Range 2: ±10 mA
1mV(0.001V)1/20000*2
Range 3: ±100 mA
10mV(0.01V)1/20000*2
High accuracy
Range 1: 0 to 20 mA
100 µV (0.1 mV; 1/100000)*2
Range 2: ±10 mA
100 µV (0.1 mV; 1/200000)*2
Range 3: ±100 mA
1mV(0.001V)1/200000*2
Input impedance
Range 1: 0 to 20 mA
1 MΩ
Range 2: ±10 mA
Range 3: ±100 mA
4 MΩ
Absolute maximum input current
Range 1: 0 to 20 mA
±100 V
Range 2: ±10 mA
Range 3: ±100 mA
±150 V
Measurement accuracy (25 ±5°C)
Range 1: 0 to 20 mA
±0.1% of F.S. ± 1 digit
Range 2: ±10 mA
Range 3: ±100 mA
±0.2% of F.S. ± 1 digit
Measurement accuracy (0 to 50°C)
Range 1: 0 to 20 mA
±0.5% of F.S. ± 1 digit
Range 2: ±10 mA
Range 3: ±100 mA
±0.6% of F.S. ± 1 digit
Control input
2 (Parameters are used to switch between the KL input, peak/bottom hold control input, and 0-point adjustment input.)
Controloutput
2 transistor (NPN open-collector) outputs (Parameters are used to switch between the KL output and comparator output.)
Setting data
Recorded to the EEPROM (rewritable 1,000,000 times)
Other functions
Hold (peak and bottom), 0-point adjustment, comparator output, filter setting (LPF and HPF), time average (simple and moving), scaling setting, display unit changing, lock
Control I/O specifications
External calibration input signal
Number of inputs
2
Maximum input voltage
DC26.4V
Input rated voltage
DC24V 5.3mA
Minimum ON voltage
19V
Maximum OFF current
1.5mA
Common ground
2/common
Input time constant
10ms
Control output
Number of outputs
2
Output
Transistor NPN output
Rated load
DC30V 0.1A
Peak load current
0.2A
Leakage current (at OFF)
100 µA or less
Residual voltage (at ON)
DC0.8V or less
Common ground
2/common
ON/OFF response time
Off to on: 10 µs or less (between 5 and 100 mA), on to off: 50 µs or less (between 5 and 100 mA)
KL link specifications
Supported master units
Model: KL-N20V, supported PLC: KEYENCE KV-1000/700; model: KL-N10V, supported PLC: KEYENCE KV-10/16/24/40; model: KV-P16*L (built-in PLC), supported PLC: KEYENCE; model: KL-N20A, supported PLC: Mitsubishi AnA, AnA, AnU, QnA, AnSH, and Q2AS; model: KL-N20C, supported PLC: Omron C200H/HS, SYSMAC α, and CS1 (excluding the C200H-02/22), KEYENCE VT2-12F/10F/10T/10S/8T/8S/7S/5T/5S/5M and DT-100
Communication address
00 H to FE H(0 to 254)
Number of occupied words
EASY mode: reception (KL to PLC): 5 words, transmission (PLC to KL): 3 words; FULL mode: reception (KL to PLC): 7 words, transmission (PLC to KL): 5 words*5
Communication speed
2.5 Mbps, 625 kbps, 156 kbps (set with parameters)*6
*1 Conforms to JIS B 3502, IEC61131-2
Number of sweeps: 10 times respectively in the X, Y, and Z directions (80 minutes)
*2 Select with the setting switch.
*3 Even if a voltage that exceeds the input range has been input, if it is within the displayable range, it will be displayed (up to 10,999 can be displayed with an absolute value). In this case, display will be performed from the lowest digit; the upper 2 digits will be displayed with A flashing. (Ex: When using 10.500 V input with a range of 2 (input range ±10 V), A.500 is displayed) If a voltage that exceeds the displayable range has been input, FFFF (-FFFF) will be displayed. Also, when scaling is in effect, if the measurement value exceeds the displayable range with an input voltage in the input range, EFFF (-EFFF) will be displayed.
*4 When scaling is enabled, the maximum resolution is 0.5 mV (1/20000).
*5 In the direction of transmission/reception when seen from the master unit.
*6 The > do not support a communication speed of 5 Mbps.
