Technical data

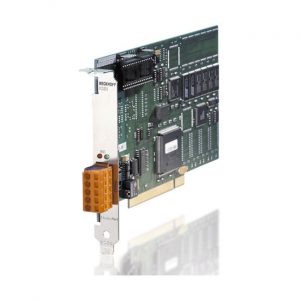

FC5201-0000
FC5201-0002
Fieldbus
DeviceNet
PC interface
PCI
Number of fieldbus channels
1
Data transfer rates
125, 250, 500 kbaud
Bus interface
open style connector, 5-pin, according to DeviceNet specification, galvanically decoupled (Connector is supplied.)
Termination resistor
switchable
Hardware diagnosis
2 LEDs per channel
Bit width in the process image
per channel total max.: 3 kbyte input and output data
NOVRAM
–
32 kbytes
Dimensions
approx. 106 mm x 175 mm
Operating temperature
0…+55 °C
Driver
TwinCAT I/O and higher levels
