Technical data

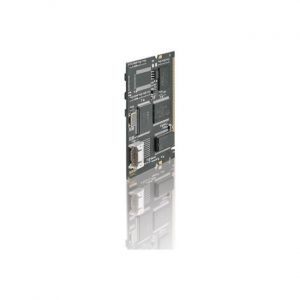

FC5151-0000
FC5151-0002
Fieldbus
CANopen
PC interface
Mini PCI
Number of fieldbus channels
1
Data transfer rates
10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
Bus interface
device-specific in the respective Industrial PC housing
Termination resistor
externally, e.g. with ZS1051-3000
Hardware diagnosis
device-specific in the respective Industrial PC housing
Bit width in the process image
per channel total max.: 3 kbyte input and output data
NOVRAM
–
128 kbytes
Dimensions
59.75 mm x 50.95 mm (type III A)
Operating temperature
0…+55 °C
Driver
TwinCAT I/O and higher levels
