Technical data

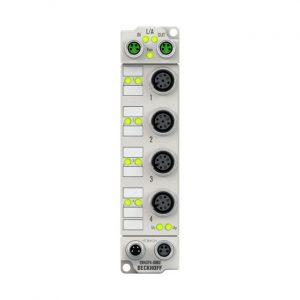

ER4374-0002
Protocol
EtherCAT
Bus interface
2 x M8 socket, shielded, screw type
Number of channels
2 analog outputs + 2 analog inputs
Input/output connections
M12, screw type
Signal type
-10/0…+10 V | 0/4…20 mA, parameterizable per channel
Nominal voltage
24 V DC (-15 %/+20 %)
Load
output: > 5 k? | 200 k? | typ. 85 ? + diode voltage
Resolution
16 bit
Conversion time
input: ~ 100 µs, output: ~ 40 µs
Measuring error
input:
