Technical data

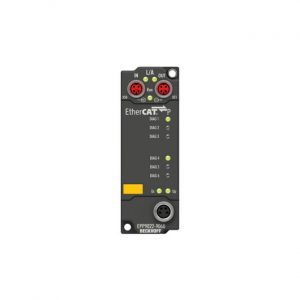

EPP9022-9060
Protocol
EtherCAT P
Bus interface
M8 socket, shielded, screw type, P-coded
Task within EtherCAT system
diagnostics of the US/UP voltages and IS/IP currents
Number of channels
IN: 1 x EtherCAT P, OUT: 1 x EtherCAT P
Nominal voltage
24 V DC (-15 %/+20 %)
Total current
feed-in max. 3 A per US and UP
Current consumption from US
typ. 100 mA
Current rating per port
max. 3 A per US and UP
Special features
diagnostic LED for US, diagnostic LED for UP, TwinSAFE SC
Weight
approx. 90 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable
Approvals/markings
CE, UL
