Technical data

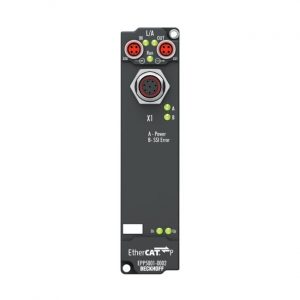

EPP5001-0002
Protocol
EtherCAT
Bus interface
2 x M8 socket, shielded, screw type, P-coded
Technology
SSI encoder interface
Connection technology
M12, screw type
Number of channels
1
Encoder connection
D+, D-, C+, C-
Encoder operating voltage
24 V DC (generated from the power contacts)
Signal output (pulse)
difference signal (RS422)
Signal input (data)
difference signal (RS422)
Nominal voltage
24 V DC (-15 %/+20 %)
Distributed clocks
yes
Data transfer rates
variable up to 1 MHz, 250 kHz default
Serial input
24 bit width (variable)
Data direction
read
Current consumption from US
typ. 130 mA + sensor supply
Electrical isolation
500 V
Special features
adjustable baud rate, coding and data length
Weight
approx. 165 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings
CE, UL in preparation
Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable
