Technical data

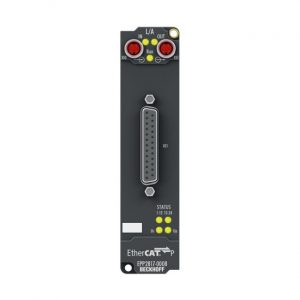

EPP2817-0008
Protocol
EtherCAT
Bus interface
2 x M8 socket, shielded, screw type, P-coded
Number of outputs
24
Output connections
D-sub socket, 25-pin, UNC4-40
Load type
ohmic, inductive, lamp load
Nominal output voltage
24 V DC (-15 %/+20 %)
Max. output current
0.5 A per channel, individually short-circuit proof, ? 3 A
Short-circuit current
max. 1.0 A
Distributed clocks
yes
Current consumption from US
typ. 100 mA
Auxiliary power current
typ. 20 mA + load
Electrical isolation
500 V
Special features
undervoltage detection for US and UP
