Technical data

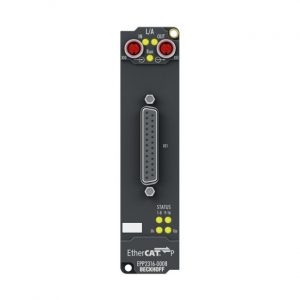

EPP2316-0008
Protocol
EtherCAT
Bus interface
2 x M8 socket, shielded, screw type, P-coded
Specification
EN 61131-2, type 1/3
Number of channels
8 inputs + 8 outputs
Input/output connections
D-sub socket, 25-pin, UNC4-40
Input filter
10 µs
“0” signal voltage
-3…+5 V
“1” signal voltage
11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply
from control voltage, max. 0.5 A, short-circuit proof in total
Load type
ohmic, inductive, lamp load
Rated load voltage
24 V DC (-15 %/+20 %)
Max. output current
0.5 A per channel, individually short-circuit proof
Short-circuit current
typ. 1.5 A
Auxiliary power current
typ. 20 mA
Current consumption from US
typ. 100 mA
Electrical isolation
500 V
Special features
ideal for high number of channels
Weight
approx. 165 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings
CE, UL
Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable
