Technical data

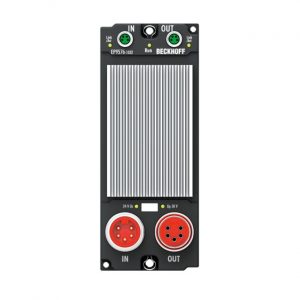

EP9576-1032
Protocol
EtherCAT
Bus interface
2 x M8 socket, shielded, screw type
Technology
brake chopper
Task within EtherCAT system
brake resistor for the dissipation of drive-related overvoltages
Nominal voltage
arbitrary up to 72 V
Power supply connection
feed: 1 x 7/8″ plug, 5-pin; downstream connection: 1 x 7/8″ socket, 5-pin
Capacity
155 µF
Ripple current (max.)
10 A
Internal resistance
