Technical data

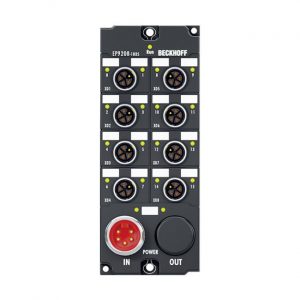

EP9208-1035
Protocol
–
Technology
passive distribution box
Number of channels
8
Connection method
M12 socket, L-coded, 4 + FE
Max. output current
16 A
Power supply connection
feed: 1 x 7/8″ plug, 5-pin; downstream connection: –
Weight
approx. 320 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable
Approvals/markings
CE, UL in preparation
