Technical data

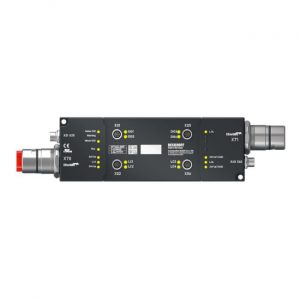

EP7402-0057
Protocol
EtherCAT
Bus interface
2 x B23 ENP, shielded, bayonet fitting
Technology
motor controller for roller conveyor systems
Number of channels
2 motor rollers, 8 digital inputs or outputs, 1 EtherCAT junction with power transmission
Supply voltage electronics
24 V DC (-15 %/+20 %)
Supply voltage power
8…24 V DC
Output current (rms)
3.5 A
Peak current (rms)
5.0 A
Input/output connections
M8, screw type
Max. output current
0.5 A/24 V DC per digital channel, individually short-circuit proof
Rated load voltage
24 V DC (-15 %/+20 %)
“0” signal voltage
0…9.6 V
“1” signal voltage
10…30 V
Load type
DC motors
Rotating field frequency
max. 12.000 rpm/72.000 °/s
Distributed clocks
–
Sensor supply
from US, max. 0.5 A total, short-circuit proof
Power supply connection
feed: 1 x B23 ENP, 5G4; downstream connection: 1 x B23 ENP, 5G4, power transmission 30 A
Electrical isolation
500 V
Current consumption from US
typ. 150 mA
Special features
compact integration, comprehensive current/voltage diagnostics
Weight
approx. 750 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings
CE, UL in preparation
