Technical data

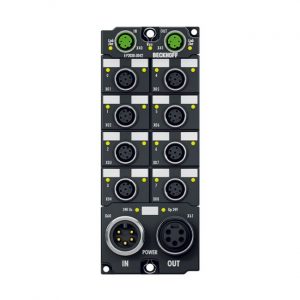

EP2038-0042
Protocol
EtherCAT
Bus interface
2 x M12 socket, 4-pin (D-coded)
Number of outputs
8
Output connections
M12, screw type
Load type
ohmic, inductive, lamp load up to max. 24 W
Nominal output voltage
24 V DC (-15 %/+20 %)
Max. output current
2.4 A per channel, individually short-circuit proof, total current max. 16 A
Short-circuit current
max. 14 A
Distributed clocks
yes
Current consumption from US
typ. 130 mA
Auxiliary power current
typ. 20 mA + load
Diagnostics
short circuit, open load detection, undervoltage
Power supply connection
feed: 1 x 7/8″ plug, 5-pin; downstream connection: 1 x 7/8″ socket, 5-pin
Electrical isolation
500 V
Weight
approx. 440 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable
Approvals/markings
CE, UL in preparation
