Technical data

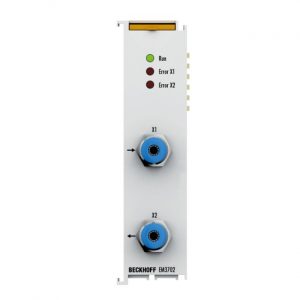

EM3702
Technology
relative pressure measurement
Number of inputs
2
Measuring error
3 % (relative to full scale value)
Measuring range
0…7500 hPa (7.5 bar)
Max. overload
10,000 hPa (10 bar)
Resolution
1 hPa (1 mbar) per digit
Measuring speed
4 ms typ.
Current consumption E-bus
typ. 60 mA
Current consumption power contacts
– (no power contacts)
Medium
non-aggressive gases
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
