Technical data

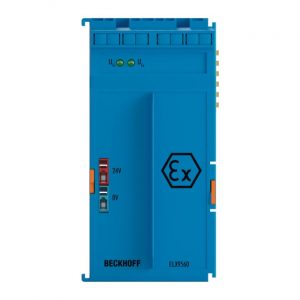

ELX9560
Technology
terminal supply
Input voltage
24 V DC (-15 %/+20 %)
Output voltage
24 V DC EX
Max. output current
0.65 A (from hardware level 01)
Current consumption E-bus
typ. 40 mA
Special features
electrically isolated output voltage, reverse polarity protection, diagnostic of supply and output voltage
Weight
approx. 200 g
Housing width
48 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL, ATEX, IECEx, cFMus, CCC
Ex marking
ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
