Technical data

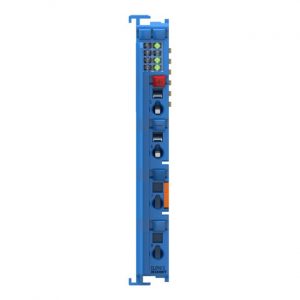

ELX9410
Technology
terminal supply
Short-circuit proof
yes
Input voltage
24 V DC
Input current
typ. 45 mA + (E-bus/4)
Output voltage
5 V for E-bus supply
Max. output current
1 A
Diagnostics in the process image
yes
Special features
E-bus refresh for ELX and EL terminals
Weight
approx. 65 g
Housing width
12 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP20/see documentation
Approvals/markings
CE, UL, ATEX, IECEx, cFMus, CCC
Ex marking
ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
