Technical data

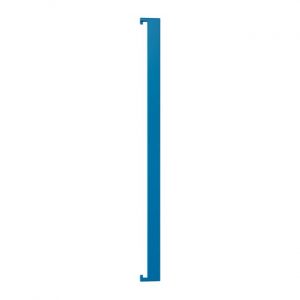

ELX9012
Technology
bus end cover
Special features
cover for power and E-bus contacts
Weight
16 g
Housing width
8 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL, ATEX, IECEx, cFMus
Ex marking
ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
