Technical data

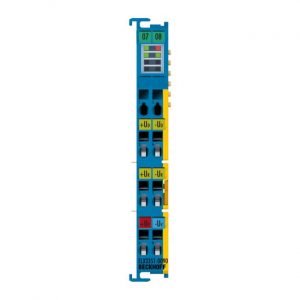

ELX3351-0090
Technology
resistor bridge, strain gauge
Sensor types
resistor bridge, strain gauge
Number of inputs
1, for 1 resistor bridge in full bridge technology
Bridge input resistance
300 ?…1.5 k?
Measuring range UD
max. -18…+18 mV
Measuring range UREF
max. -12…+12 V
Internal resistance
> 25 k? (UR, differential), > 1 M? (UD, differential)
Input filter limit frequency
typ. 3.6 kHz (-3 dB, low pass)
Conversion time
typ. 1.6 ms
Resolution
24 bit, 32 bit presentation
Filter
50 Hz, configurable
Measuring error
