Technical data

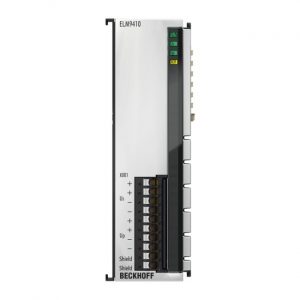

ELM9410
Technology
power supply terminal
Short-circuit proof
yes
Input voltage
24 V DC
Input current
typ. 70 mA + (E-bus/4)
Power supply
24 V DC (-15 %/+20 %)
Output voltage
5 V for E-bus supply
Output current
2 A
Current consumption from US
50 mA + (? E-bus current/4)
Current consumption from UP
50 mA + load
Current supply E-bus
2000 mA
Insulation voltage input/output
500 V (E-bus/US/UP)
Power contacts
max. 24 V DC/max. 2 A
Diagnostics in the process image
yes
Special features
electrically isolated output voltages, reverse polarity protection, diagnostics of supply and output voltages
Weight
approx. 450 g
Operating/storage temperature
0…+55 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Electrical isolation
500 V (E-bus/field potential)
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE
