Technical data

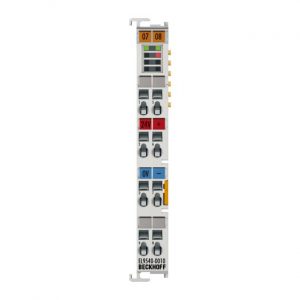

EL9540-0010, ES9540-0010
Technology
surge filter field supply
Nominal voltage
24 V (-15 %/+20 %)
Surge filter field supply
yes
Rated current field supply
? 5 A
PE connection
yes
Electrical isolation
500 V (E-bus/field potential)
Diagnostics
yes
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all ESxxxx terminals
Approvals/markings
CE, DNV GL
