Technical data

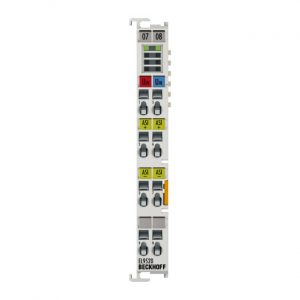

EL9520, ES9520
Technology
AS-Interface potential feed terminal
Input voltage
up to 35 V
Output voltage
up to 35 V
Output current
2 A
Current load
max. 2 A
Configuration
no address or configuration setting
Current consumption E-bus
typ. 100 mA
Electrical isolation
500 V (E-bus/field potential)
Diagnostics in the process image
–
Special features
no electrical isolation
Weight
approx. 90 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE
AS-Interface certificate
yes, ZU-No. 101601
