Technical data

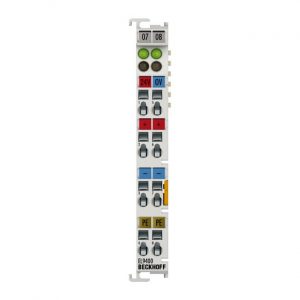

EL9400, ES9400
Technology
power supply terminal
Input voltage
24 V DC (-15 %/+20 %)
Input current
typ. 70 mA + (E-bus/4)
Output voltage
5 V for E-bus supply
Output current
2 A
Electrical isolation
500 V (E-bus/field potential)
Insulation voltage input/output
–
Power contacts
max. 24 V DC/max. 10 A
Weight
approx. 65 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all ESxxxx terminals
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
