Technical data

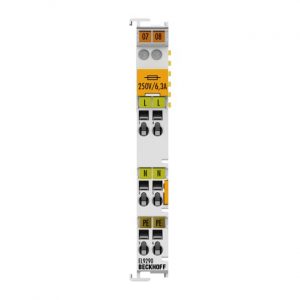

EL9290
Technology
potential supply terminal with fuse
Current load
? 10 A
Renewed infeed
yes
Nominal voltage
arbitrary up to 230 V AC
Integrated fine-wire fuse
…6.3 A
Electrical isolation
500 V (E-bus/field potential)
PE contact
yes
Connection facility to additional power contact
1
Bit width in the process image
0
Housing width
12 mm
Side by side mounting on EtherCAT Terminals with power contact
yes
Side by side mounting on EtherCAT Terminals without power contact
yes
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Approvals/markings
CE
