Technical data

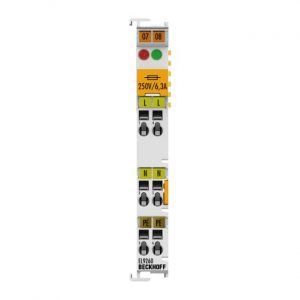

EL9260
Technology
potential supply terminal with diagnostics and fuse
Current load
? 10 A
Power LED
green
Defect LED
red
Renewed infeed
yes
Current consumption E-bus
typ. 90 mA
Nominal voltage
120/230 V AC
Integrated fine-wire fuse
…6.3 A
Electrical isolation
500 V (E-bus/field potential)
Diagnostics in the process image
yes
Reported to E-bus
yes
PE contact
yes
Connection facility to additional power contact
1
Bit width in the process image
2
Housing width
12 mm
Side by side mounting on EtherCAT Terminals with power contact
yes
Side by side mounting on EtherCAT Terminals without power contact
yes
Weight
approx. 55 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Approvals/markings
CE
