Technical data

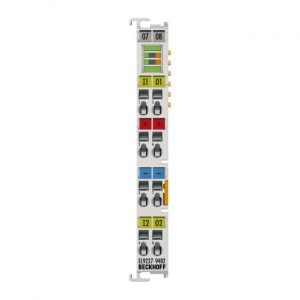

EL9227-9482
Technology
overcurrent protection terminal 24 V DC, 2-channel
Nominal voltage
24 V DC
Number of outputs
2
Number of inputs
2
Input current
max. 10 A
Rated current
8 A/2 A
Hold after output switch-off
? 10 s (temperature-dependent)
Advance warning output load
adjustable; 50…100 %
Integrated fail-safe element
10 A (F) | 4 A (T)
Over voltage power-off
? 32 V DC
Advance warning low-voltage
adjustable; 17…24 V DC
Reverse polarity switch-off
yes
Backward switch-off
adjustable; 3-stage
Current consumption E-bus
typ. 80 mA
Electrical isolation
500 V (E-bus/signal voltage)
Special features
output 1 additionally via power contact, LED button, extended functionalities
Weight
approx. 55 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Approvals/markings
CE, cULus, cURus
