Technical data

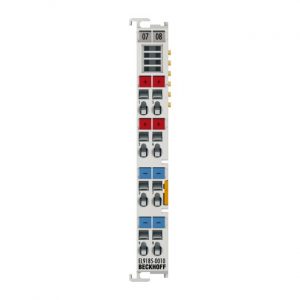

EL9185-0010, ES9185-0010
Technology
potential distribution terminal with potential supply function
Current load
? 10 A
Renewed infeed
yes
Nominal voltage
arbitrary up to 230 V AC/DC
Electrical isolation
500 V (E-bus/field potential)
Connection facility to additional power contact
3
Bit width in the process image
0
Housing width
12 mm
Side by side mounting on EtherCAT Terminals with power contact
yes
Side by side mounting on EtherCAT Terminals without power contact
yes
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Approvals/markings
CE
