Technical data

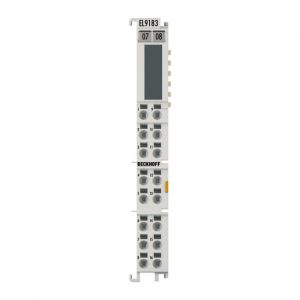

EL9183
Technology
potential distribution terminal
Number of separate potentials
1
Terminal points per potential
16
Nominal voltage
? 60 V AC/DC
Current load
max. 10 A
E-bus looped through
yes
Power contacts_looped_through
yes (2 power contacts)
Electrical isolation
500 V (E-bus/field potential)
Configuration
no address or configuration setting
Special features
16-way bridge
Weight
approx. 60 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
