Technical data

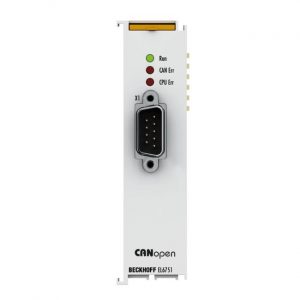

EL6751
EL6751-0010
Technology
CANopen master terminal
CANopen slave terminal
Fieldbus
CANopen
Number of fieldbus channels
1
Data transfer rates
10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
Communication
CANopen network master and CANopen manager, optionally CANopen slave
Interfaces
D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
Hardware diagnosis
status LEDs
Current consumption E-bus
typ. 230 mA
Special features
status LEDs, CANopen network master, CANopen Manager, supports RAW-CAN
status LEDs, CANopen slave
Weight
approx. 70 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
