Technical data

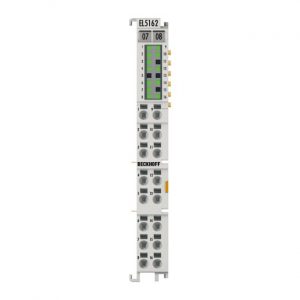

EL5162
Technology
incremental encoder interface, HTL 24 V DC
Number of channels
2
Encoder connection
2 x A, B, C 24 V HTL single-ended connection: A, B, C counter, pulse generator: A, B EN 61131-2, type 3, “0”: 11 V DC, typ. 3 mA
Additional inputs
latch, gate/latch, 24 V DC
Encoder operating voltage
24 V DC (-15 %/+20 %), (generated from the 24 V DC power contacts)
Counter
32 bit (default), 16/32 bit switchable
Limit frequency
400,000 increments/s (with 4-fold evaluation), corresponding to 100 kHz
Quadrature decoder
4-fold evaluation (default), 2-fold, 1-fold evaluation switchable
Distributed clocks
yes
Nominal voltage
24 V DC (-15 %/+20 %)
Resolution
1/256 bit microincrements
Current consumption power contacts
typ. 1 mA + load
Current consumption E-bus
typ. 150 mA
Special features
period duration, frequency, speed and duty cycle measurement, microincrements, timestamp on: last incremental edge, zero pulse C, latch input, gate/latch input
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE
