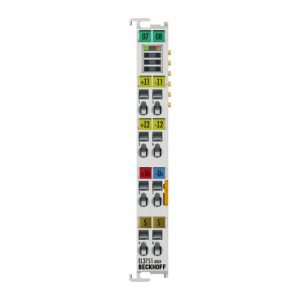

EL3751-0004 | EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24 bit, 10 ksps

SKU: EL3751-0004
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mã sản phẩm: EL3751-0004 Danh mục: , ,
Liên hệ báo giá

Technical data
EL3751-0004

Number of inputs
1

Power supply
via the E-bus

Technology

Signal type
differential

Oversampling factor
n = 1…64

Distributed clocks
yes

Distributed clock precision
4 M?

Input filter limit frequency
3 kHz

Dielectric strength
max. 36 V

Connection method
2-, 3-, 4-wire

Conversion time
100 µs/10 ksps

Measuring range, nominal
0…5 k?, RTD, Pt100/Pt1000, Ni, KTY

Measuring range, technical
generally 107 % of the nominal measuring range, see documentation

Resolution
24 bit (incl. sign)

Measuring error
typ. ±0.01 % relative to the respective full scale value @ 23 °C in some measuring ranges, see documentation

Temperature coefficient
typ.
