Technical data

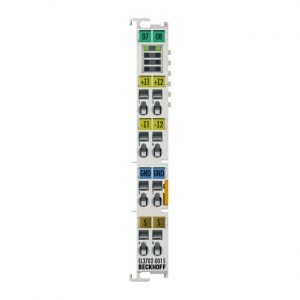

EL3702-0015
Number of inputs
2 (differential)
Power supply
via the E-bus
Technology
differential input, oversampling
Signal type
differential
Signal voltage
-150…+150 mV
Max. sampling rate
max. 10 µs/100 ksps (per channel, simultaneously)
Oversampling factor
n = 1…100 selectable (max. 100 ksamples/s)
Input signal bandwidth
0…30 kHz recommended
Distributed clocks
yes
Distributed clock precision
200 k?
Input filter limit frequency
80 kHz
Common-mode voltage UCM
max. 35 V
Conversion time
~ 10 µs per sample
Resolution
16 bit (incl. sign)
Measuring error
