Technical data

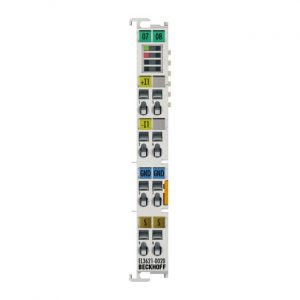

EL3621-0020
Number of inputs
1 (differential)
Power supply
via the E-bus
Technology
differential input
Signal current
4…20 mA
Distributed clocks
–
Internal resistance
typ. 85 ? + diode voltage
Input filter limit frequency
3 kHz
Common-mode voltage UCM
max. 10 V
Resolution
24 bit (incl. sign)
Conversion time
1…400 ms configurable
Input signal bandwidth
see input filter
Measuring error
60 dB
Special features
various filter times, limit evaluation, high precision, with calibration certificate
Weight
approx. 60 g
Operating/storage temperature
0…+50 °C/-25…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE
