Technical data

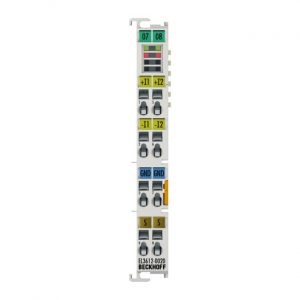

EL3612-0020
Number of inputs
2 (differential)
Power supply
via the E-bus
Technology
differential input
Signal type
differential
Signal current
0…20 mA
Oversampling factor
–
Input signal bandwidth
see input filter
Distributed clocks
–
Distributed clock precision
–
Internal resistance
typ. 85 ? + diode voltage
Input filter limit frequency
3 kHz
Common-mode voltage UCM
max. 10 V
Conversion time
1…400 ms configurable
Resolution
24 bit (incl. sign)
Measuring error
60 dB
Special features
various filter times, limit evaluation, high precision, with calibration certificate
Weight
approx. 60 g
Operating/storage temperature
0…+50 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
