Technical data

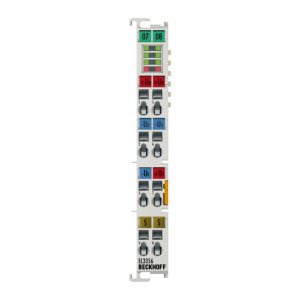

EL3356, ES3356
Number of inputs
2, for 1 resistor bridge in full bridge technology
Power supply
via the E-bus
Technology
resistor bridge, strain gauge
Signal type
differential
Distributed clocks
–
Measuring range UD
max. ±27 mV
Measuring range UREF
max. ±13.8 V
Internal resistance
> 200 k? (UREF), > 1 M? (UD)
Input filter limit frequency
10 kHz low pass (-3 dB)
Conversion rate
100…4 samples/s (10…250 ms conversion time)
Power supply UV
up to 12 V DC from power contacts, dependent on sensor
Resolution
16 bit, 32 bit presentation
Measuring error
