Technical data

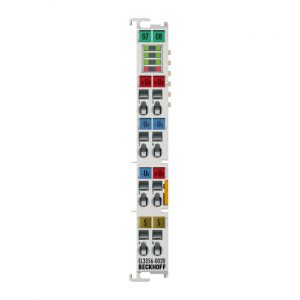

EL3356-0020
Number of inputs
2, for 1 resistor bridge in full bridge technology
Technology
resistor bridge, strain gauge
Signal type
differential
Distributed clocks
yes
Measuring range UD
max. -25…+25 mV rated voltage
Measuring range UREF
max. -12…+12 V rated voltage
Internal resistance
> 200 k? (UREF), > 1 M? (UD)
Input filter limit frequency
10 kHz low pass (-3 dB)
Conversion time
0.1…250 ms, configurable, max. 10,000 samples/s
Conversion rate
10,000…4 samples/s (0.1…250 ms conversion time)
Power supply UV
up to 12 V DC from power contacts, dependent on sensor
Resolution
24 bit, 32 bit presentation
Measuring error
