Technical data

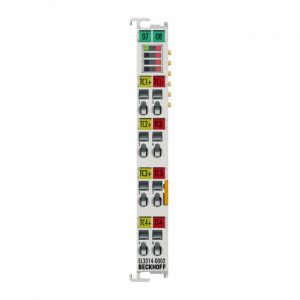

EL3314-0002
Number of inputs
4
Technology
Temperature measurement (TC)
Connection method
2-wire
Signal type
differential
Temperature measurement (thermocouple)
type B, C, E, J, K, L, N, R, S, T, U (default setting: type K)
Measurement uncertainty (temperature measurement)
at 23 °C ambient temperature, with internal cold junction, according type: B: ±2.2 °C; C: ±2.4 °C; E: ±1.8 °C; J: ±1.9 °C; K: ±1.9 °C; L: ±1.8 °C; N: ±1.9 °C; R: ±2.1 °C; S: ±2.1 °C; T: ±1.8 °C; U: ±1.8 °C; for further details see documentation
Voltage measurement
±78 mV, ±2,5 V
Measurement uncertainty (voltage measurement)
at ±78 mV, 23 °C ambient temperature:
