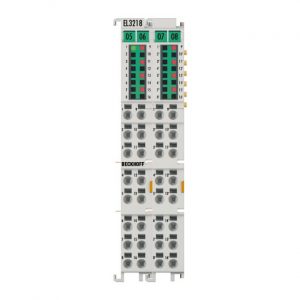

EL3218 | EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection

SKU: EL3218
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mã sản phẩm: EL3218 Danh mục: , ,
Liên hệ báo giá

Technical data
EL3218

Number of inputs
8

Power supply
via the E-bus

Technology
2-/3-wire

Signal type
differential

Distributed clocks

Input filter limit frequency
typ. 1 kHz

Sensor types
Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 ?…1/4 k?), KTY sensors (types see documentation)

Connection method
2- or 3-wire (default: 3-wire)

Conversion time
approx. 170 ms default setting

Measuring current
