Technical data

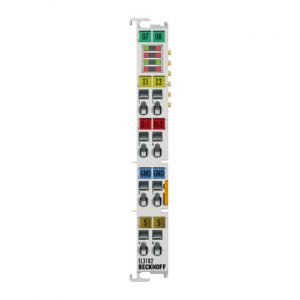

EL3182, ES3182
Number of inputs
2
Technology
HART (version 7)
Signal type
single-ended
Signal current
0/4…20 mA
Power supply
via the E-bus
Internal resistance
typ. 250 ?
Input filter limit frequency
25 Hz
Dielectric strength
max. 30 V
Measuring range, technical
generally 107 % of the nominal measuring range, see documentation
Resolution
16 bit (incl. sign)
Measuring error
