Technical data

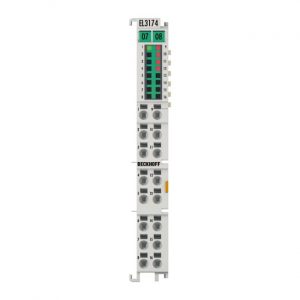

EL3174
Number of inputs
4
Power supply
via the E-bus
Technology
U differential, I single-ended
Signal type
differential
Oversampling factor
–
Distributed clocks
yes
Distributed clock precision
200 k? | typ. 85 ?
Input filter limit frequency
5 kHz
Common-mode voltage UCM
max. 35 V (voltage measurement)
Dielectric strength
max. 30 V (current measurement)
Conversion time
minimum 150 µs
Measuring range, nominal
-10/0…+10 V | -20/0/+4…+20 mA
Measuring range, technical
-10.73…+10.73 V | -21.47…+21.47 mA
Resolution
16 bit (incl. sign)
Measuring error
