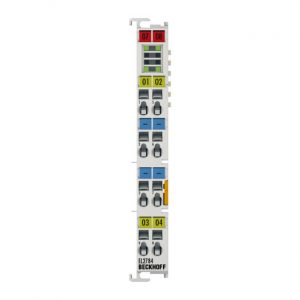

EL2784 | EtherCAT Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A

Technical data
EL2784, ES2784

Connection technology
2-wire

Number of outputs
4 x make contacts

Nominal voltage
0…30 V AC/DC (ohmic load only: 0…48 V DC)

Distributed clocks
–

Max. output current
2 A per channel

Short-circuit current
not short-circuit proof, see peak current

Reverse voltage protection
–

Switching times
TON: typ. 1.8 ms, TOFF: typ. 30 ms

Output current
2 A

Breakdown voltage
80 V

Peak current
5 A (100 ms),
