Technical data

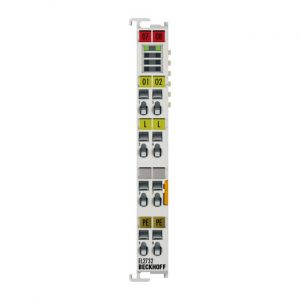

EL2732, ES2732
Connection technology
triac output, 2-wire
Number of outputs
2 x make contacts (without power contacts), mutually locked
Rated load voltage
12…230 V AC
Load type
ohmic, inductive
Distributed clocks
–
Max. output current
1 A (leakage current: typ. 0.8 mA, max. 1.5 mA) per channel
Switching times
in zero crossing, 0.1…10 ms
Rotating field frequency
47…63 Hz
Surge voltage protection
> 275 V
Peak current
40 A (16 ms), 1.5 A (30 s)
Standby current
0.6 mA
Leakage current (OFF state)
typ. 0.8 mA, max. 1.5 mA
Switch-on time
0.1…10 ms, zero crossing
Switch-off time
T/2
Residual voltage
max. 1.5 V (60 mA…1 A), 150 ? (
