Technical data

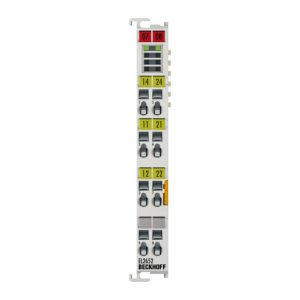

EL2652, ES2652
Connection technology
relay output
Number of outputs
2 x change-over
Switching voltage max.
250 V AC, 300 V DC
Nominal voltage
230 V AC (max. switching voltage 250 V AC/300 V DC)
Load type
ohmic, inductive, lamp load
Distributed clocks
–
Ohmic switching current
3 A AC/DC (at 30 V DC), 1 A AC/DC (at 40 V DC), 0.15 A DC (at 300 V DC), for UL: 1 A, max. 230 V AC
Minimum permitted load
100 mA at 12 V
Current consumption E-bus
180 mA
Electrical isolation
1.5 kV (E-bus/field potential); 2.5 kV rated surge voltage, overvoltage category III
Current consumption power contacts
–
Max. switching frequency
6/min. (at rated load)
Operating cycles mech. (min.)
5 x 106
Operating cycles electr. (min.)
1 x 106 (1 A/250 V AC ohmic load)
Special features
reverse switching realisable
Weight
approx. 55 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all ESxxxx terminals
Approvals/markings
CE, UL, DNV GL
