Technical data

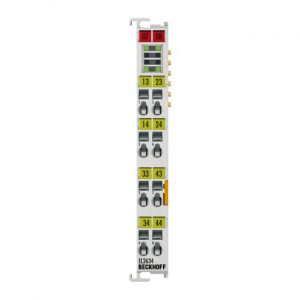

EL2634, ES2634
Connection technology
relay output
Number of outputs
4 x make contacts
Nominal voltage
250 V AC/30 V DC
Load type
ohmic, inductive
Distributed clocks
–
Ohmic switching current
4 A AC/DC per channel
Inductive switching current
2 A AC/DC per channel
Minimum permitted load
0.1 mA at 0.1 V DC (at 120 operations/min.)
Lamp test, electronic ballast
–
Current consumption E-bus
80 mA
Electrical isolation
500 V (E-bus/field potential)
Current consumption power contacts
–
Bit width in the process image
4 outputs
Operating cycles mech. (min.)
2 x 107 (at 18 x 103 switching cycles per hour)
Operating cycles electr. (min.)
1 x 105 (3 A/30 V DC ohmic load)
Configuration
no address or configuration setting
Weight
approx. 70 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Pluggable wiring
for all ESxxxx terminals
Approvals/markings
CE, UL
