Technical data

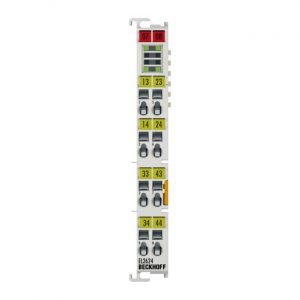

EL2624, ES2624
Connection technology
relay output
Number of outputs
4 x make contacts
Nominal voltage
125 V AC/30 V DC
Load type
ohmic
Distributed clocks
–
Ohmic switching current
0.5 A AC/2 A DC per channel
Inductive switching current
no data
Minimum permitted load
10 µA at 10 mV DC with intact contact coating
Current consumption E-bus
typ. 200 mA
Electrical isolation
500 V (E-bus/field potential)
Current consumption power contacts
–
Bit width in the process image
4 outputs
Operating cycles mech. (min.)
1 x 108
Operating cycles electr. (min.)
2 x 105 (1 A/30 V DC)
Configuration
no address or configuration setting
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all ESxxxx terminals
Approvals/markings
CE, UL
