Technical data

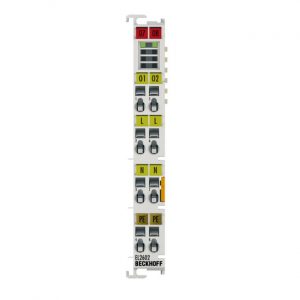

EL2602, ES2602
Connection technology
relay output
Number of outputs
2 x make contacts for power contact
Nominal voltage
230 V AC/30 V DC
Load type
ohmic, inductive, lamp load
Distributed clocks
–
Ohmic switching current
5 A AC/DC per channel
Inductive switching current
2 A AC/DC per channel
Minimum permitted load
10 mA at 5 V DC
Lamp test, electronic ballast
4 x 58 W
Current consumption E-bus
typ. 170 mA
Electrical isolation
500 V (E-bus/field potential)
Current consumption power contacts
load-dependent
Bit width in the process image
2 outputs
Operating cycles mech. (min.)
2 x 107
Operating cycles electr. (min.)
1 x 105 (5 A/30 V DC)
Configuration
no address or configuration setting
Special features
1-wire connection possible
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all ESxxxx terminals
Approvals/markings
CE, UL
