Technical data

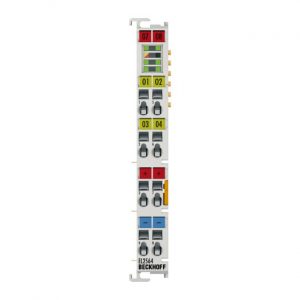

EL2564
Recommended use
general lighting, LED control, multicolor common anode LEDs
Connection technology
2-wire
Number of outputs
4
Input voltage
5…48 V DC
Load type
LED (ohmic)
Output voltage
UIN
Max. output current
4 A per channel
PWM clock frequency
1 Hz…16 kHz, 5 kHz default
Duty factor
0…100 %
Resolution
15 bit (depending on PWM frequency)
Output current
4 A per channel
Current consumption E-bus
typ. 70 mA
Configuration
via TwinCAT System Manager
Special features
ground switching PWM for common anode LEDs, adjustable color share per channel (duty cycle), adjustable light intensity/brightness, adjustable frequency (anti-stroboscope)
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE
