Technical data

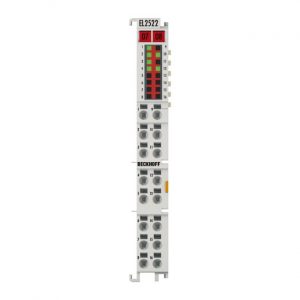

EL2522
Connection technology
pulse train (frequency output)
Number of outputs
2 channel A/B, 1 channel A/B/C (4 differential outputs)
Distributed clocks
yes
Output specification
RS422, differential, 50 mA, min. 120 ? load
Short-circuit current
short-circuit proof
Base frequency
0…4 MHz, 50 kHz default
Resolution
16 bit (incl. sign, scaled via the set frequency range)
Step size
min. 10 ns (internal)
Current consumption E-bus
typ. 120 mA
Electrical isolation
500 V (E-bus/field potential)
Current consumption power contacts
typ. 50 mA (load-dependent)
Special features
operating modes as with EL2521, ABC incremental encoder simulation including interfacing with TwinCAT NC
Weight
approx. 50 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
