Technical data

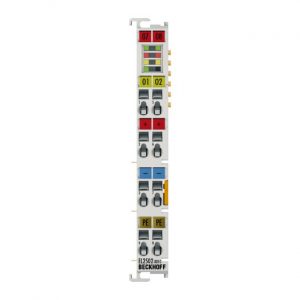

EL2502-0010
Connection technology
PWM output, push-pull outputs
Number of outputs
2
Nominal voltage
24 V DC (-15 %/+20 %)
Load type
ohmic, inductive, lamp load
Distributed clocks
yes
Max. output current
0.5 A (short-circuit proof) per channel
Short-circuit current
typ. 750 ns, TOFF > 500 ns)
Resolution
9…15 bit
Reverse voltage protection
yes
Current consumption E-bus
typ. 150 mA
Electrical isolation
500 V (E-bus/field potential)
Current consumption power contacts
typ. 30 mA + load
Bit width in the process image
2 x 16 bit PWM output
Configuration
via TwinCAT System Manager
Special features
separate frequency can be set for each channel
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX
